Force Diagrams

Lever mechanics for each major muscle group, generated from analysis of 1,619 exercises. Each diagram shows the joint as a fulcrum, the muscle insertion as the effort arm, and the load position as the resistance arm.

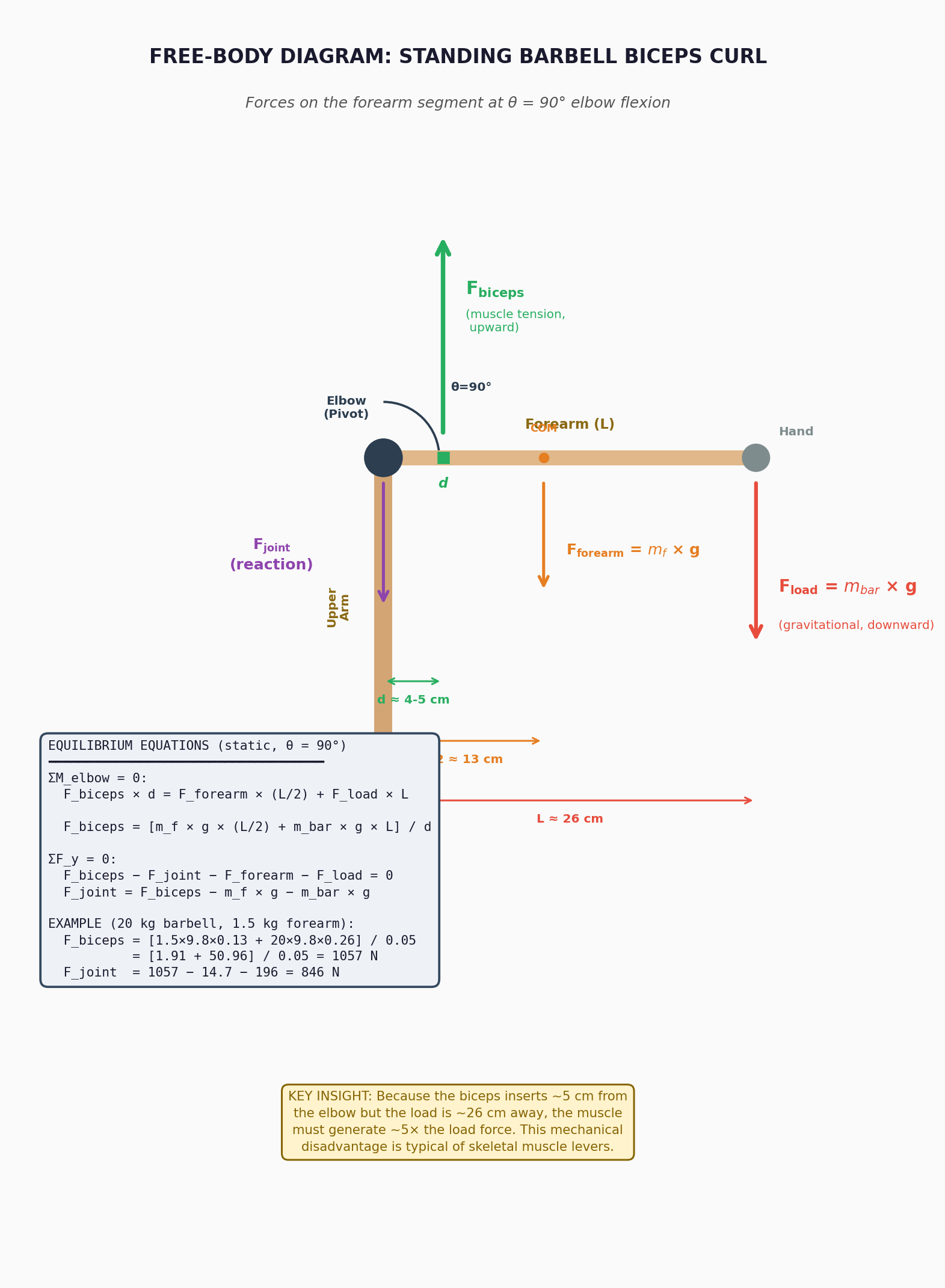

Biceps curl force diagram
Biceps Curl5:1 lever ratio · elbow joint

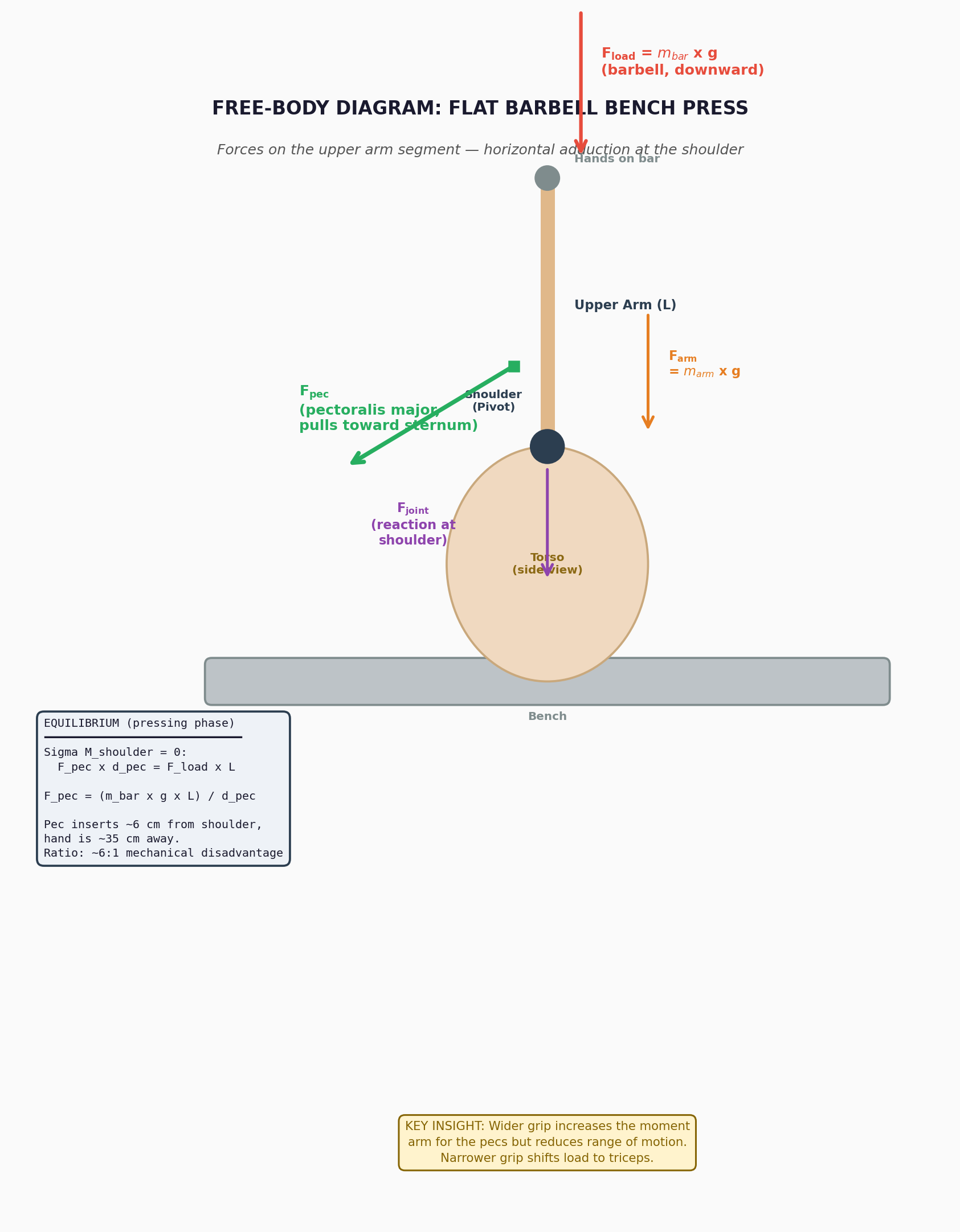

Chest bench press force diagram
Chest — Bench Press6:1 lever ratio · shoulder joint

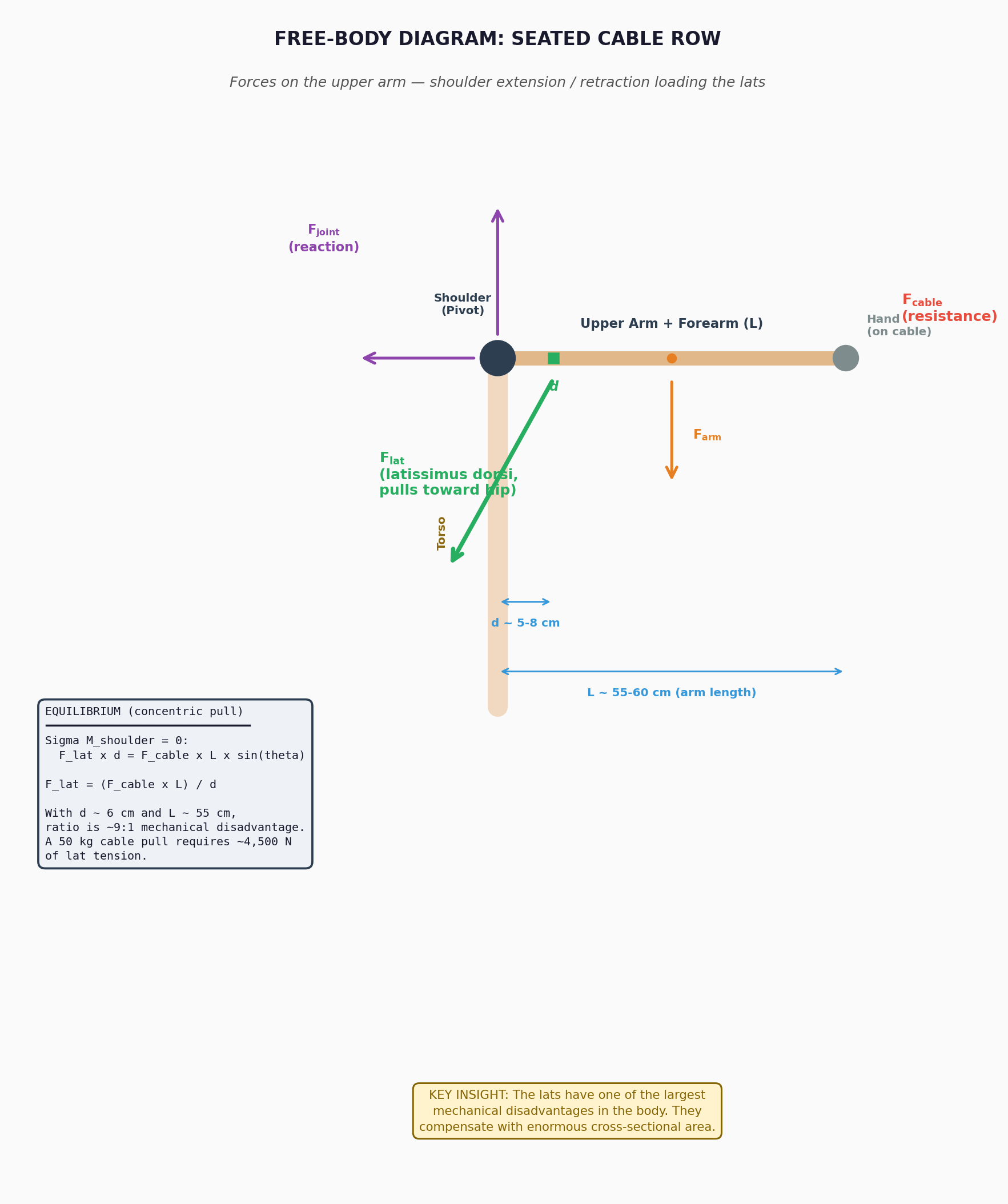

Back lats cable row force diagram
Back — Cable Row9:1 lever ratio · shoulder joint

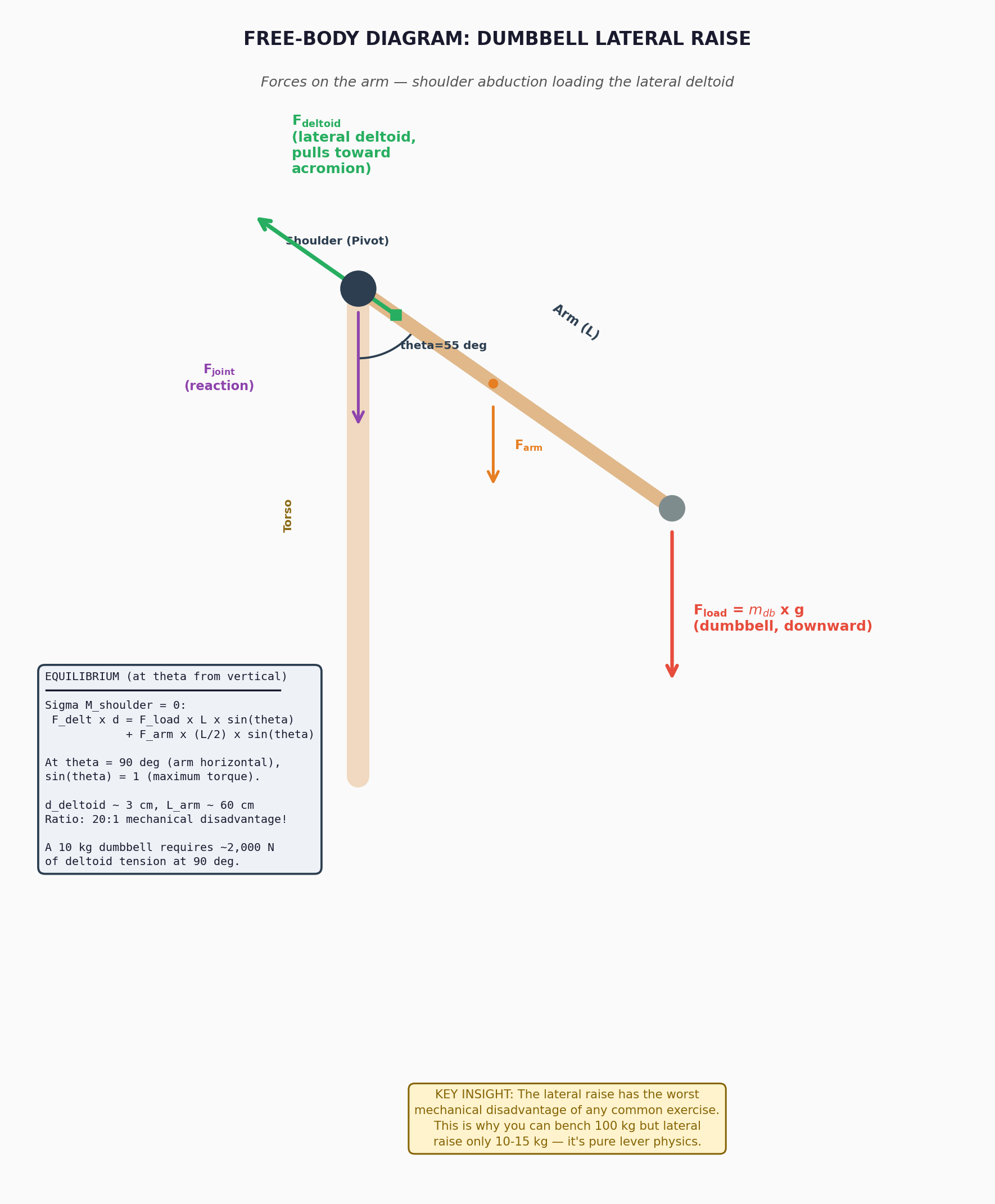

Shoulders lateral raise force diagram
Shoulders — Lateral Raise20:1 lever ratio · shoulder joint

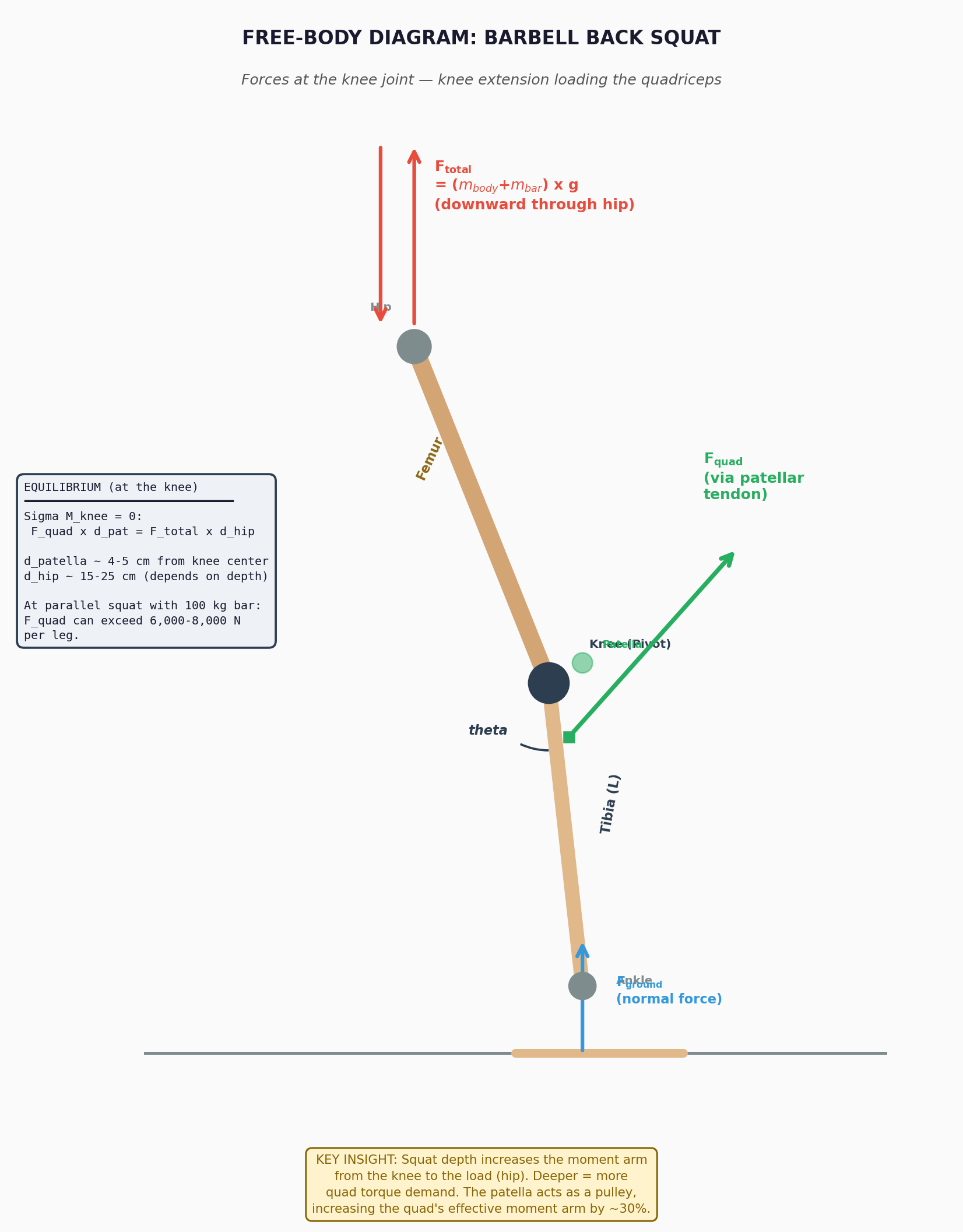

Quads barbell squat force diagram
Quadriceps — Barbell Squat5:1 lever ratio · knee joint

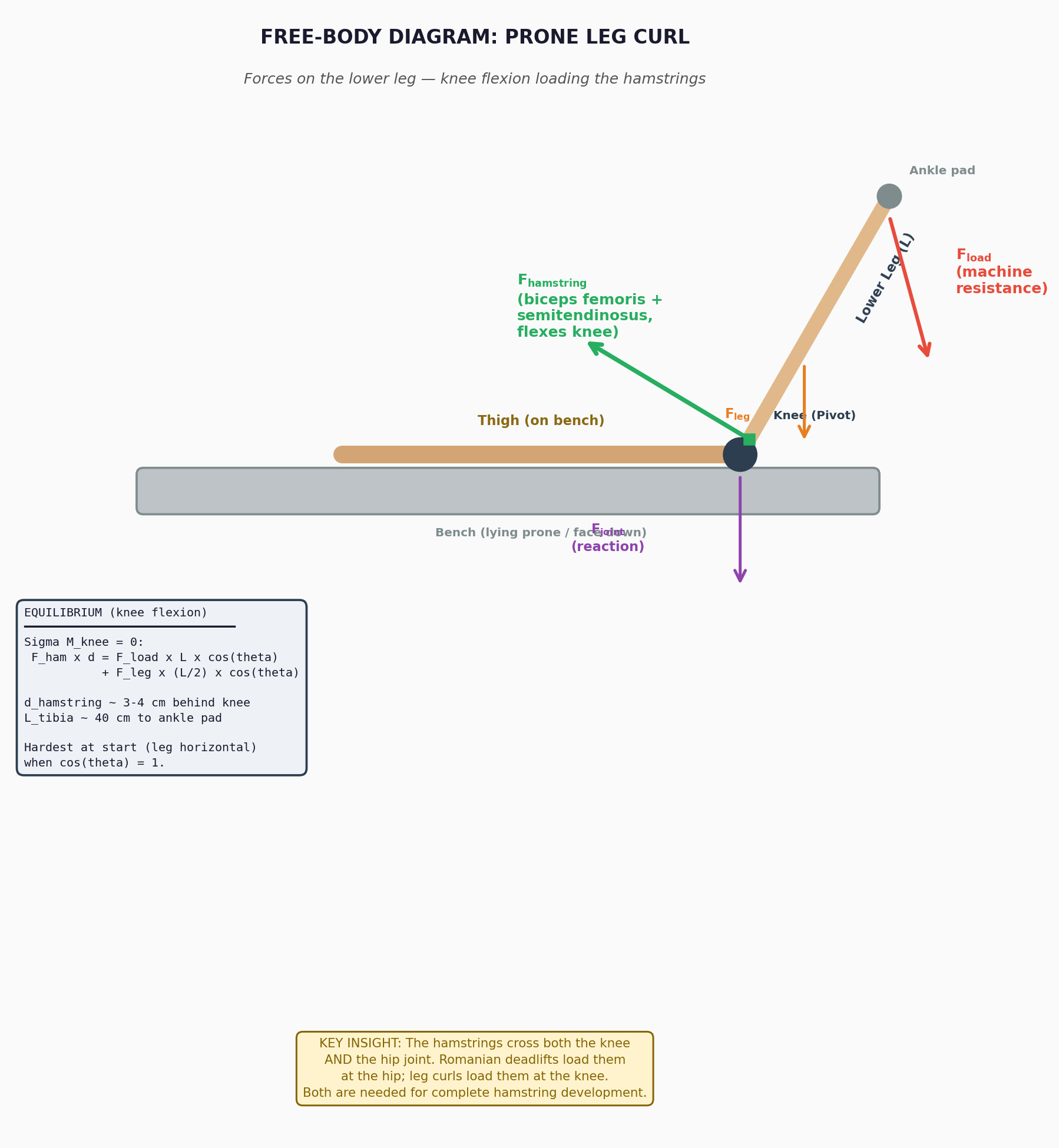

Hamstrings leg curl force diagram
Hamstrings — Leg Curl10:1 lever ratio · knee & hip joints

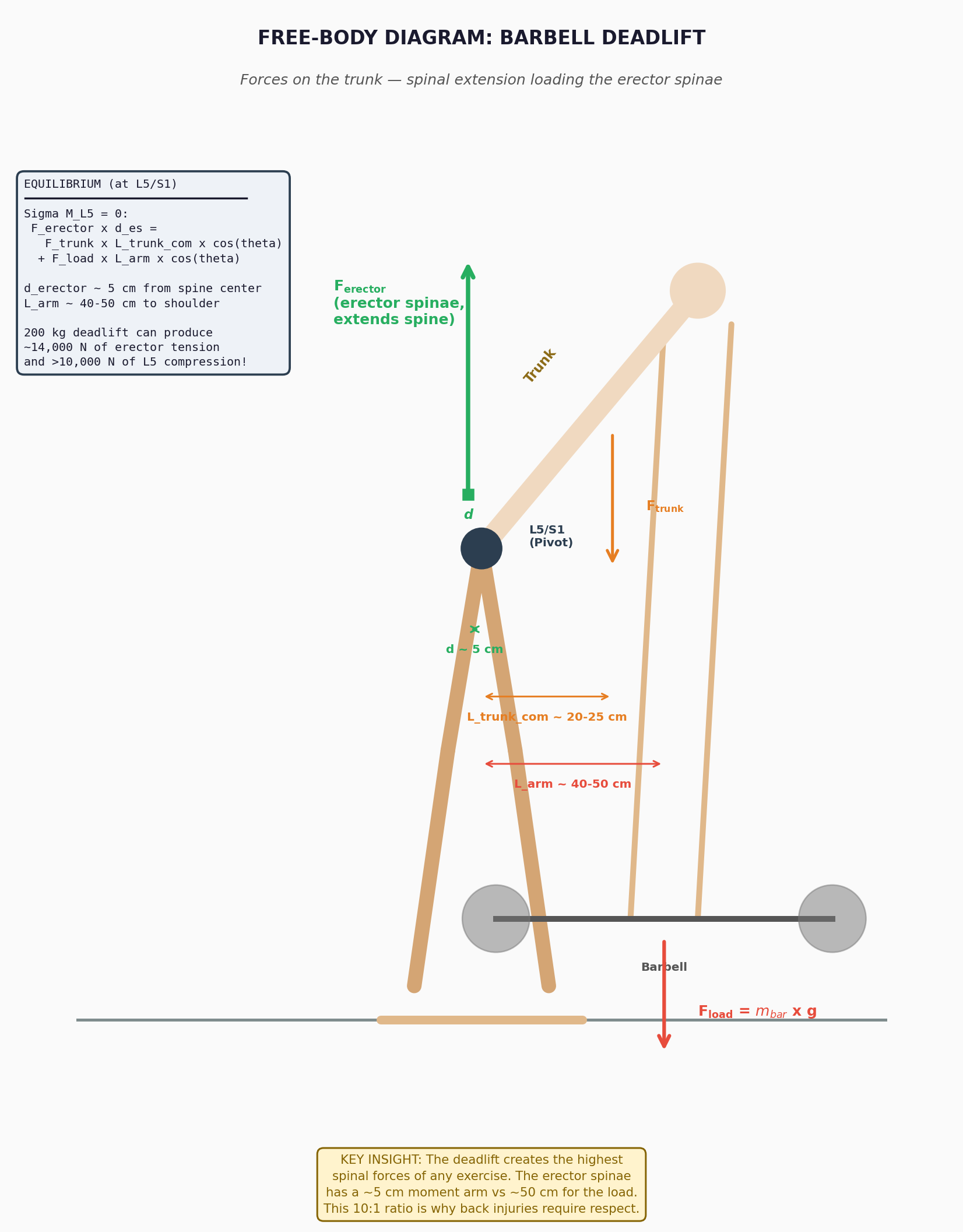

Lower back deadlift force diagram
Lower Back — Deadlift10:1 lever ratio · lumbar spine

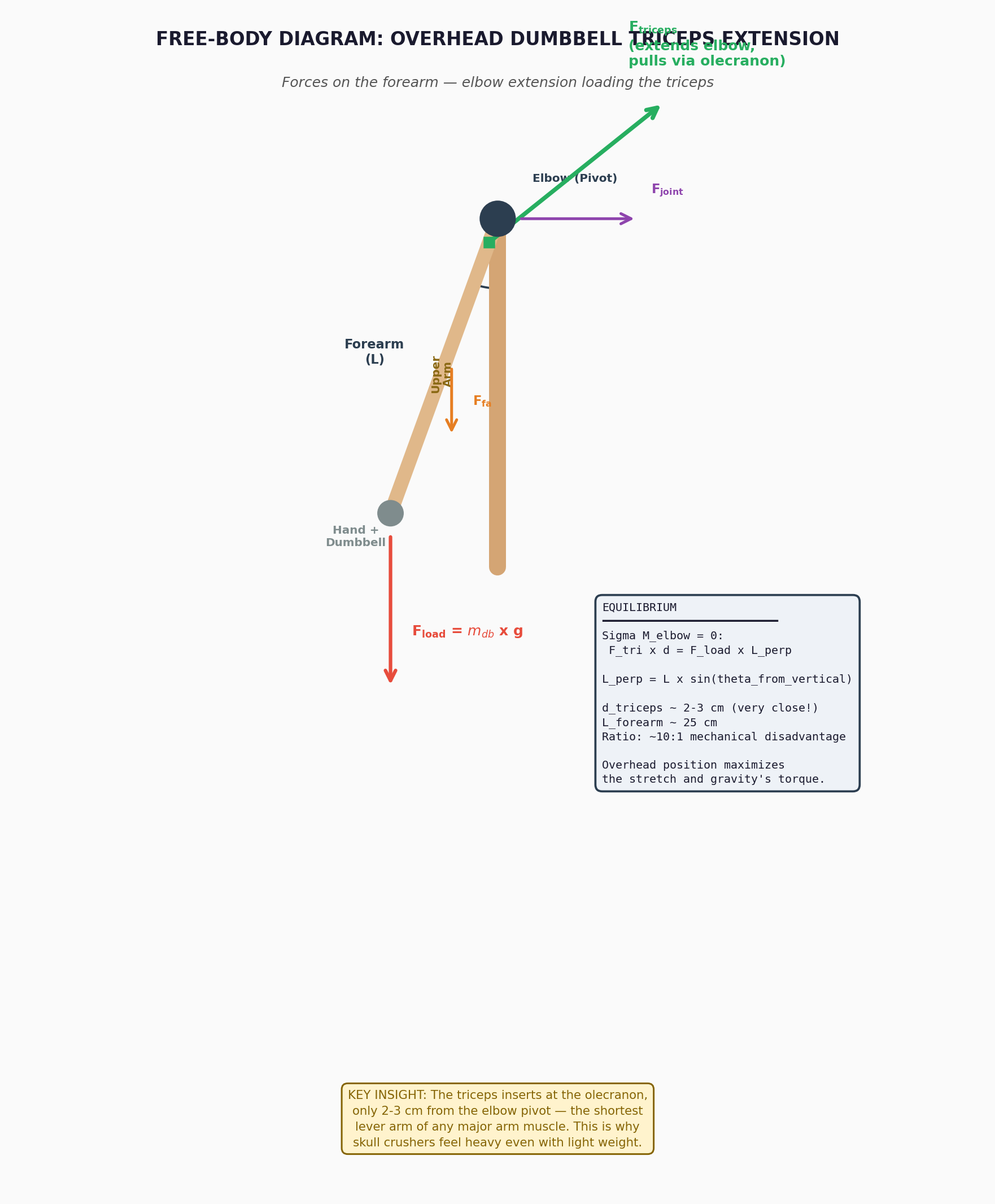

Triceps overhead extension force diagram
Triceps — Overhead Extension10:1 lever ratio · elbow joint

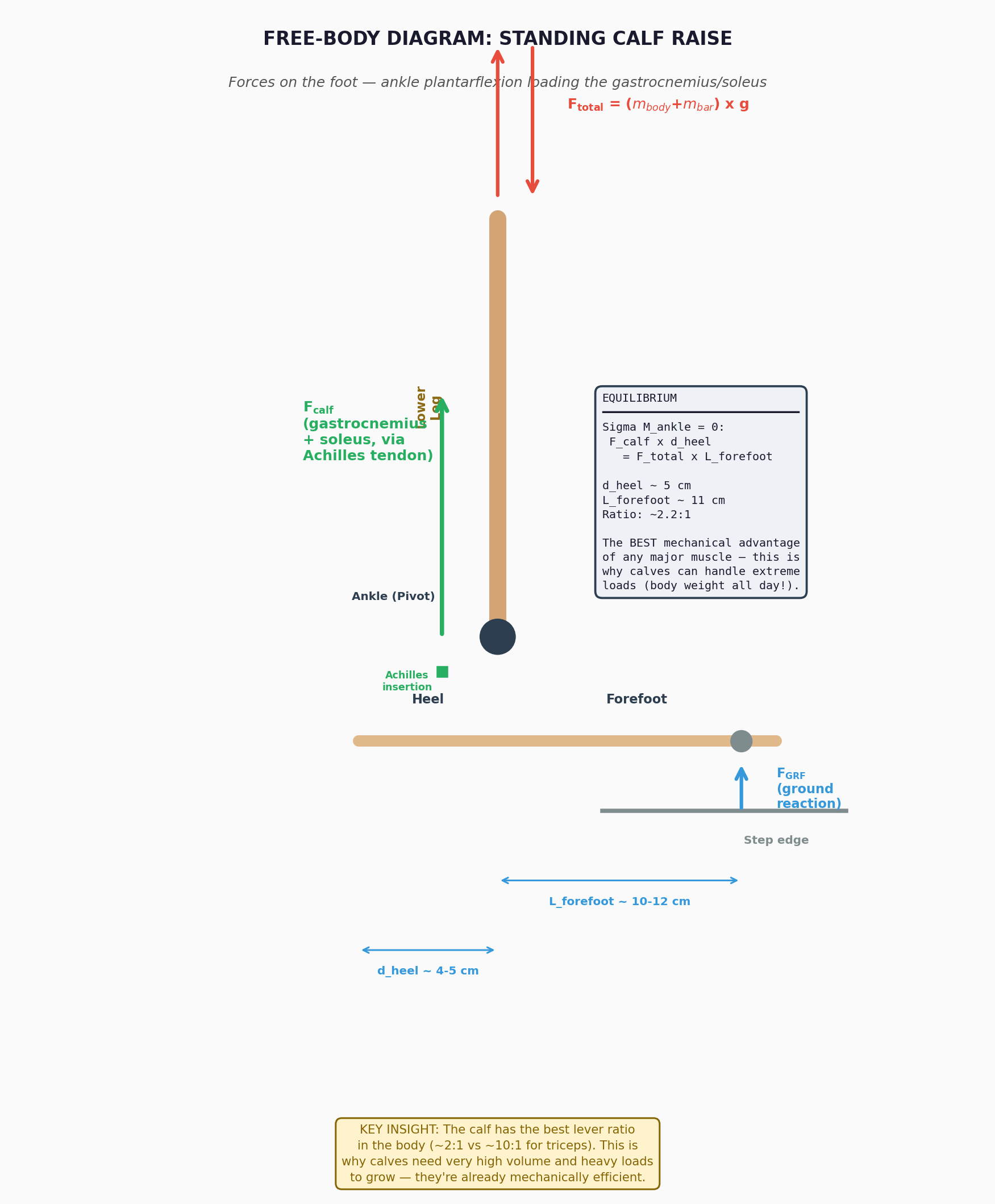

Calves calf raise force diagram
Calves — Calf Raise2:1 lever ratio · ankle joint

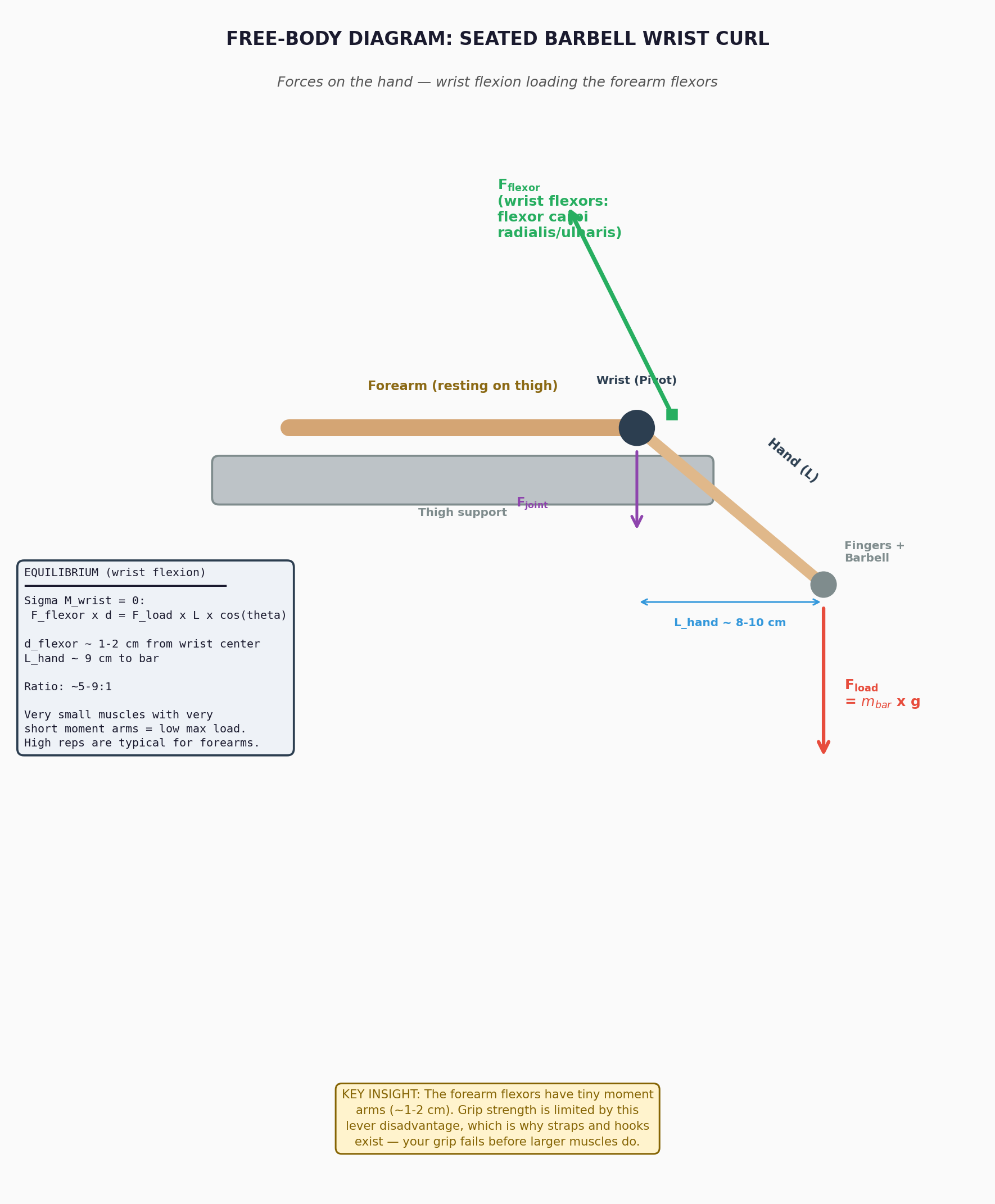

Forearms wrist curl force diagram
Forearms — Wrist Curl7:1 lever ratio · wrist joint

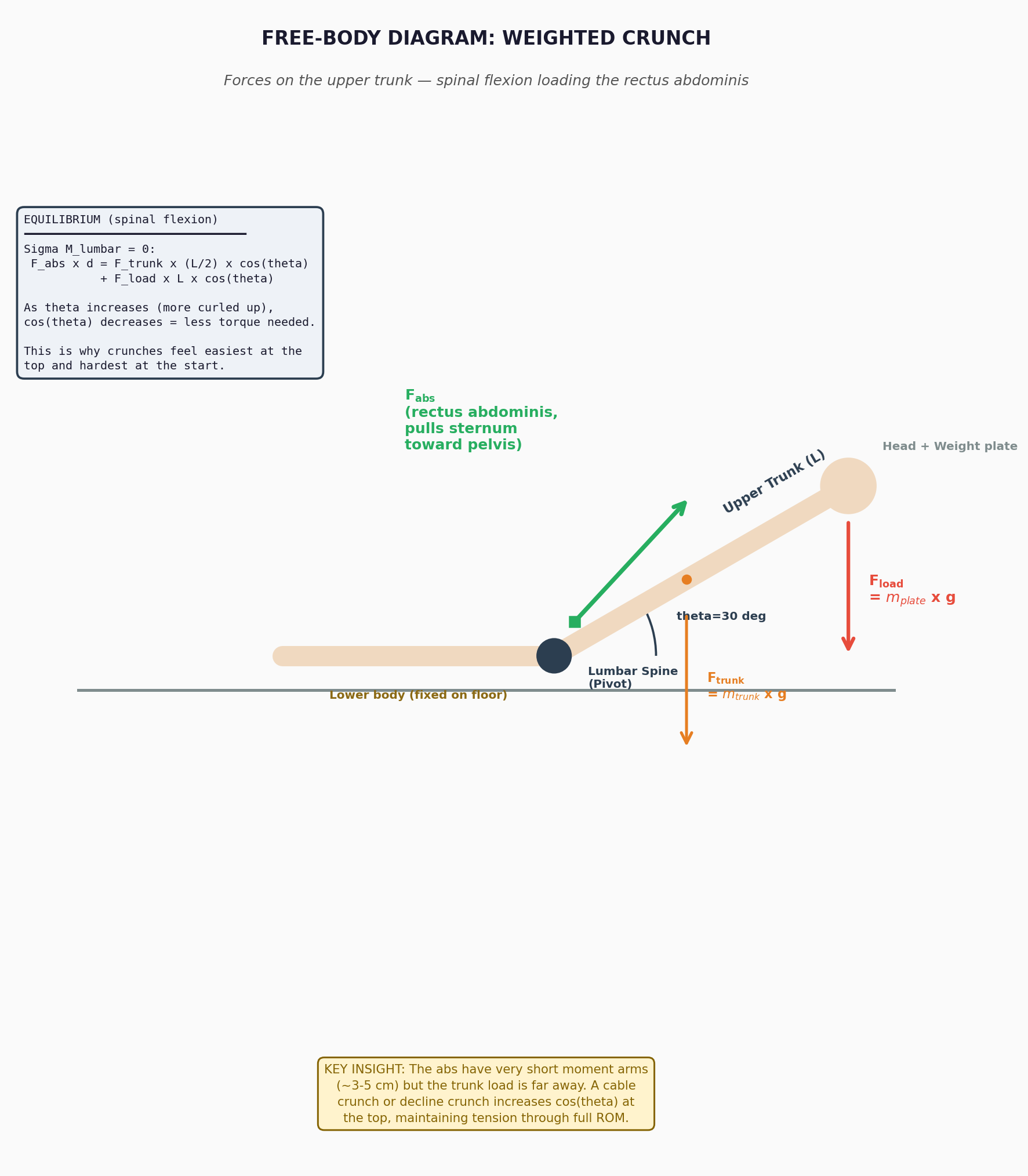

Abdominals crunch force diagram
Abdominals — Crunch7–8:1 lever ratio · lumbar spine
